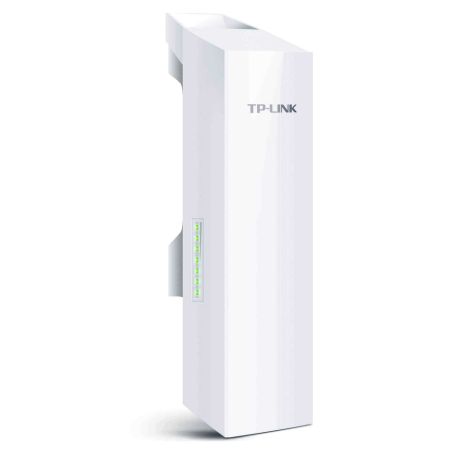

2.4GHz 300Mbps 9dBi Outdoor CPE
- Built-in 9dBi 2×2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimizations for more than 5km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
What this product does
TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.
Enterprise Hardware Design
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30C (-22F) to +70C (158F).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.
High Power & High Sensitivity
In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE210 an ideal product for outdoor wireless networking applications.
Professional Outdoor Design
CPE210 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions.
With its outdoor weatherproof enclosure and industrial-level hardware design, CPE210 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C).
Double Protection against ESD Attacks
Besides its grounding terminal, CPE210 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE210’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC – Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
User-friendly web-based management system allows professionals to apply more specific configurations
- Primary Function: Access Point
- #Hide#Access Point Mode: Yes (Access Point Mode)
- Dual Band: No
- Max Wireless Transfer Rate: 300 Mbps
- Max Wired Transfer Rate: 10/100 Mbps
- Interface(s): “1 x 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 x Grounding Terminal
1 x Reset Button”
- Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled)
- Antenna: 9dBi 2×2 Dual-polarized Directional Antenna
Beam Width: 65 degree (H-Plane) / 35 degree (E-Plane)
- Protection: 15KV ESD Protection
6000V Lightning Protection
- Button(s): Remote Reset Button
- Power Supply: Passive Power over Ethernet via LAN0
Voltage range: 16-27VDC
- Power Consumption: 10.5 Watts Max
- Dimensions (W x D x H): 224 x 79 x 60 mm
- Weatherproof: Yes (Weatherproof)
- Frequency: 2.4~2.483GHz
- Reception Sensitivity: See manufacturers link (next to product images)
- Wireless Security: “WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter”
- Wireless Range: System-level optimizations for more than 5km
- Management: Discovery and Remote Management
HTTP/HTTPS Web-based management
Ping Watch Dog
- Advanced Functions: See manufacturers link (next to product images)
- Package Contents: Outdoor Wireless CPE
24V 1A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
- Package Type: Retail
- Package Weight: 0.7900 kg
- Warranty: Limited Lifetime
