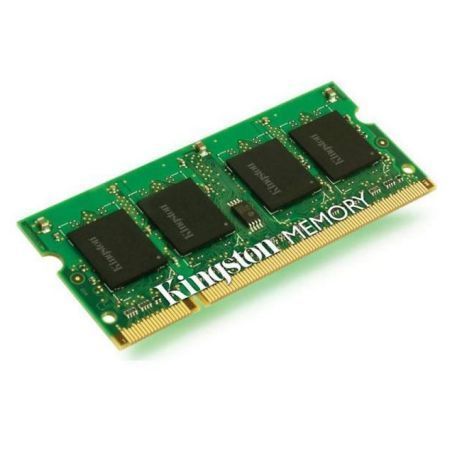

Kingston 8GB, DDR3L, 1600MHz (PC3L-12800), CL11, SODIMM Memory *Low Voltage 1.35V*

KVR16LS11/8

8GB 2Rx8 1G x 64-Bit PC3L-12800 CL11 204-Pin SODIMM



ValueRAM’s 1G x 64-bit (8GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8, low voltage, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This

204-pin SODIMM uses gold contact fingers.







Features



• JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V) Power Supply

• VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)

• 800MHz fCK for 1600Mb/sec/pin

• 8 independent internal bank

• Programmable CAS Latency: 11, 10, 9, 8, 7, 6

•
