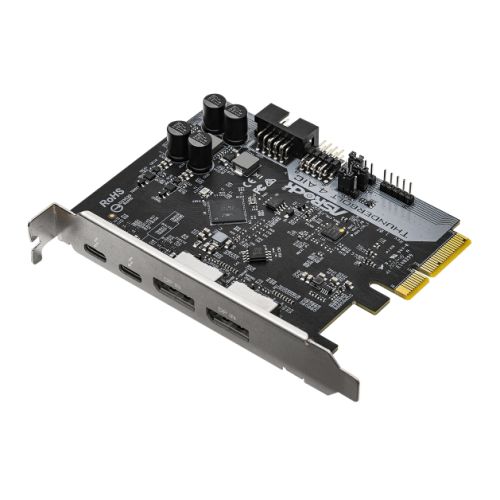

Asrock Thunderbolt 4 AIC, PCI Express, 2 x Thunderbolt 4 Type-C, 2 x DisplayPort IN, 1 x USB 2.0, TBT Header

Description

• Intel JHL8540 Thunderbolt™ 4 Controller
• Delivers breathtaking 40 Gb/s data transfer speeds!
• Single-cable connection for connecting a 5K@60Hz or two 4K@60Hz displays
• Supports USB PD 2.0 charging up to 9V@3A (27W)
• Connecting to any dock, device or display which includes PCIe, USB, DisplayPort protocols

Specification

• Type: Thunderbolt Card
• Ports: 2 x Thunderbolt 4 Type-C Ports (up to 40Gbps bandwidth)*
  1 x TBT Header
  2 x DisplayPort IN Ports
  1 x USB 2.0 Header

  *Supports daisy-chaining of up to five Thunderbolt devices
  Supports USB PD 2.0 up to 9V@3A (27W) / 5V@3A (15W) charging
  USB keyboard/mouse wake up is not supported

• Host Interface(s): PCI Express 3.0 x4
• Additional Featues: See Overview
• Dimensions: 3.3-in x 4.1-in
• Package Contents: “Quick Installation Guide, Support CD
  1 x TBT Header Cable
  2 x DisplayPort Cable
  1 x USB 2.0 Cable”
• Package Type: Retail
• Package Weight: 0.2500 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#Host Interface: PCI Express
